Description
Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they’ve been manufacturing Ford truck headers decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman’s unique, gasketless ball and socket collector design allows your exhaust system to bolt up to these Ford 5.0L headers, even if it is not perfectly aligned with the header collectors.
These uncoated, LONG-TUBE headers fit 1980-96 Ford 1/2, 3/4 and 1 ton, 4WD Trucks, and 2WD or 4WD Broncos with a 5.0L (302W) engine. The long, smooth-flowing 1-1/2 in. tube design provides superb exhaust flow to let your Ford truck or Bronco’s 5.0L engine breathe easy, and produce more horsepower and torque. They fit automatic transmissions only. Not designed for use with manual transmissions.
These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. For protection against the element and lower underhood temperatures, these headers are also available with a silver or black ceramic-metallic finish.
Features & Benefits
- Natural Steel Construction
- Standard Duty, Uncoated
- Designed For Performance And Durability
- Made In The USA
- Easy Installation
- Limited Lifetime Warranty
Attributes
- Style: Long Tube
- Collector Diameter (IN): 3 Inch
- State Legal: 49 State Legal
- Exit Location: Chassis Exit
- Primary Tube Diameter (IN): 1-1/2 Inch
- Flange Type: Standard
- Flange Thickness: 1/4 Inch
- Color/ Finish: Natural
- Material: Steel
- Includes Bolts/Studs: Yes
- Includes Gaskets: Yes
- Includes Reducers: Yes
- Welding Required: No

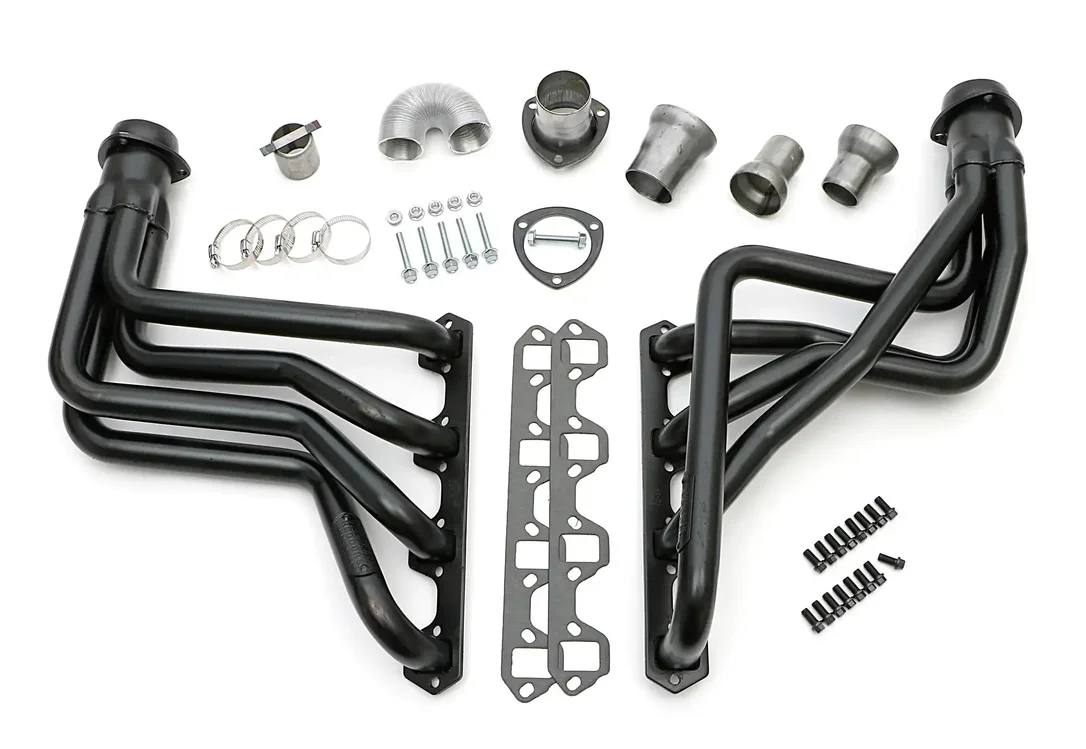

Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.
Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.
Specifications:
| Engine Version | Ford Windsor Block (W) |
| Contents | headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware |
| Title | HEDMAN HEDDERS STANDARD UNCOATED HEADERS; 1-1/2 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN |
| Notes | 80-96 Ford F150, F250, F350, Bronco; 2-4WD 302 5.0L |
| Collector Diameter | 3 in. |
| Tube Style | Long Tubes |
| Package Contents | Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Tube Material Thickness | 16g |
| Primary Tube Gauge | 16g |
| Flange Thickness | 0.3125 in. |
| Tube Design | Standard |
| Header Fasteners Included | Yes |
| Bolts/Studs Included | Yes |
| Gasket Or Seal Included | Yes |
| Header Style | Long Tube |
| Reducers Included | Yes |
| Air Conditioning | Yes |
| Automatic Transmission – Column | Yes |
| Automatic Transmission – Floor | Yes |
| Collector Size | 3 in. |
| Collector Style | BALL and SOCKET Style (Gasketless) |
| Emissions Notes | EO# D167-27 (click here for covered vehicles in document on website) |
| Exhaust System Dia | 2-1/2 in. |
| Finish | Uncoated |
| Finish Type | Uncoated Mild steel |
| Flange Style | Standard |
| Replacement Head Flange Gasket | 27340 |
| Header Port Shape | Square |
| Key Feature | 50 State Legal |
| Manual Transmission – Column | No |
| Manual Transmission – Floor | No |
| Material | Mild Steel |
| Port Shape | Square |
| Power Steering | Yes |
| Reducer Outlet Size | 2-1/2 in. |
| Tube Diameter | 1-1/2 in. |
| Tube Length | Long Tubes |
| Tube Size | 1-1/2 in. |
| Variations | 89356, 89358 |
| Cylinder Head Port Shape | Square |
| Header Finish | Uncoated |
| Header Material | Mild Steel |
| Mounting Hardware Included | Yes |
| Primary Tube Diameter (in) | 1.50 in. |
| Tuned | No |
| Weld-Up | No |
| Collector Bolts Included | Yes |
| Catalytic Converter(s) Included | No |
| Crossover Pipe Included | No |
| Motor Mounts Included | No |
| Quantity | Sold as a pair. |
| Cylinder Head | Stock Profile Heads |
| Replacement Gasket | 27340 |
| Installation Hardware Included | Yes |
| with A.I.R. System | No |
| with EGR | No |
| Y-Pipe Included | No |
| Collector Attachment | 3 in. |
| Header Construction | MILD STEEL- Standard-Duty |
| E.O. # | Yes |
| California Proposition 65 | WARNING: Cancer. For more info visit |
