Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they’ve been manufacturing long and mid-length tube headers for Chevy trucks for nearly as long. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman’s unique, gasketless ball and socket collector design allows your 5.0L / 5.7L SB Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.
Hedman’s standard-duty, uncoated headers are manufactured using 18 Gauge, mandrel bent primary tubes and flanges. The factory black paint applied to uncoated headers is not hi-temperature and is for pre-installation protection only. For the ultimate in protection against the elements, we suggest Hedman’s Original HTC coating.
These uncoated, LONG-TUBE headers fit 1988-95 2WD and 4WD 1/2, 3/4 & 1 ton Chevy Trucks with a factory 5.0L or 5.7L Chevy powerplant (check the application listings for exact fitment). The smooth 1-5/8 in. tube design provides ample exhaust flow to let your OBS Chevy truck’s factory Small Block engine breathe easy, and produce maximum horsepower and torque.
These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. For protection against the element and lower underhood temperatures, these headers are also available with a silver or black ceramic-metallic finish.

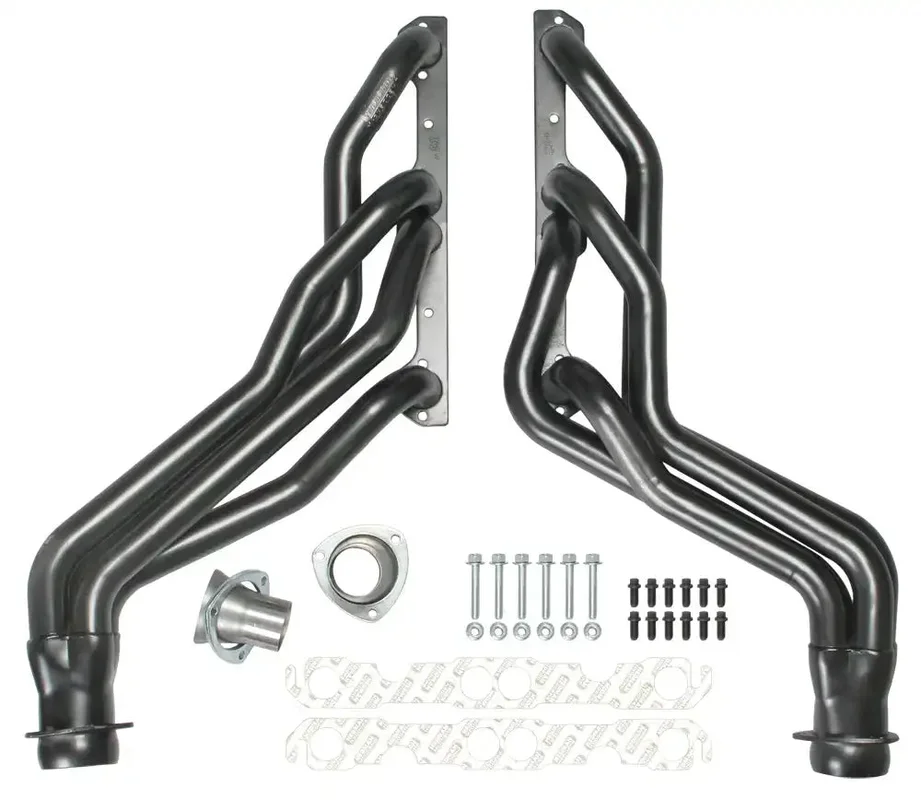

Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.
Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.
Exhaust Header; Chassis Exit; 1-5/8 Inch Diameter Primary Tubes; 3 Inch Diameter Collectors; For Off-Road Use Only; Natural Steel
Features & Benefits
- Natural Steel Construction
- Standard Duty, Uncoated
- Designed For Performance And Durability
- Made In The USA
- Easy Installation
- Limited Lifetime Warranty
Attributes
- Style: Long Tube
- Collector Diameter (IN): 3 Inch
- State Legal: Off-Road Only
- Exit Location: Chassis Exit
- Primary Tube Diameter (IN): 1-5/8 Inch
- Flange Type: Standard
- Flange Thickness: 5/16 Inch
- Color/ Finish: Natural
- Material: Steel
- Includes Bolts/Studs: Yes
- Includes Gaskets: Yes
- Includes Reducers: Yes
- Welding Required: No
Installation Instructions
Technical Bulletins
Specifications:
| _DES | 88-95 CHEVY 2WD/4WD PICKUP WITH SB- UNCOATED |
| _EXT | HEADERS FOR ’88-95 CHEVY 2WD/4WD PICKUP WITH SB; 1-5/8 in. TUBE; 3 in. COLLECTOR- UNCOATED |
| _ASM | 1988-1995 Chevrolet C1500 5.0 Liter GAS, 1988-1995 Chevrolet C1500 5.7 Liter GAS, 1988-1995 Chevrolet C2500 5.0 Liter GAS, 1988-1995 Chevrolet C2500 5.7 Liter GAS, 1988-1995 Chevrolet C3500 5.7 Liter GAS, 1988-1995 Chevrolet K1500 5.0 Liter GAS, 1988-1995 Chevrolet K1500 5.7 Liter GAS, 1988-1995 Chevrolet K2500 5.0 Liter GAS, 1988-1995 Chevrolet K2500 5.7 Liter GAS, 1988-1995 Chevrolet K3500 5.7 Liter GAS, 1988 Chevrolet R20 5.0 Liter GAS, 1988 Chevrolet R20 5.7 Liter GAS, 1989 Chevrolet R2500 5.7 Liter GAS, 1988 Chevrolet R30 5.7 Liter GAS, 1989-1991 Chevrolet R3500 5.7 Liter GAS, 1988 Chevrolet V30 5.7 Liter GAS, 1989-1991 Chevrolet V3500 5.7 Liter GAS, 1988-1995 GMC C1500 5.0 Liter GAS, 1988-1995 GMC C1500 5.7 Liter GAS, 1988-1995 GMC C2500 5.0 Liter GAS, 1988-1995 GMC C2500 5.7 Liter GAS, 1988-1995 GMC C3500 5.7 Liter GAS, 1988-1989 GMC K1500 5.0 Liter GAS, 1991-1995 GMC K1500 5.0 Liter GAS, 1988-1989 GMC K1500 5.7 Liter GAS, 1991-1995 GMC K1500 5.7 Liter GAS, 1988-1995 GMC K2500 5.0 Liter GAS, 1988-1995 GMC K2500 5.7 Liter GAS, 1988-1995 GMC K3500 5.7 Liter GAS, 1988-1989 GMC R2500 5.7 Liter GAS, 1988-1991 GMC R3500 5.7 Liter GAS, 1988-1991 GMC V3500 5.7 Liter GAS |
| _SHO | HEADERS, UNCOATED |
| _INV | HEDMAN GM TRUCK HEADER-UNCOATED |
| _MKT |
Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they’ve been manufacturing long and mid-length tube headers for Chevy trucks for nearly as long. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman’s unique, gasketless ball and socket collector design allows your 5.0L / 5.7L SB Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors. These uncoated, LONG-TUBE headers fit 1988-95 2WD and 4WD 1/2, 3/4 & 1 ton Chevy Trucks with a factory 5.0L or 5.7L Chevy powerplant (check the application listings for exact fitment). The smooth 1-5/8 in. tube design provides ample exhaust flow to let your OBS Chevy truck’s factory Small Block engine breathe easy, and produce maximum horsepower and torque. These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. For protection against the element and lower underhood temperatures, these headers are also available with a silver or black ceramic-metallic finish. Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed. Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. |
| _FAB | Handcrafted, Mild Steel Construction. |
| _FAB | Long Tube Header Design Provides Excellent Top-End Horsepower and Torque. |
| _FAB | Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors |
| _FAB | Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters) |
| _FAB | Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating! |
| _FAB | Proud To Say, Made In The USA, Since 1954! |
| _DEF | Exhaust Header |
