Description

Attributes

• Adjustable: No
• Valving Type: Application Specific Valving
• Shock Type: Nitrogen Gas Charged
• Upper Mounting Type: Strut
• Lower Mounting type: Eyelet
• Front/Rear Drop (IN): 2 To 3 Inch Front
• Extended Height (IN): 20.43 Inch
• Compressed Height (IN): 16.04 Inch
• Shock Body Color: Silver
• Shock Body Material: Aluminum
• Quantity: Single
• Spring Color: Silver
• Includes Mounting Hardware: No

Product

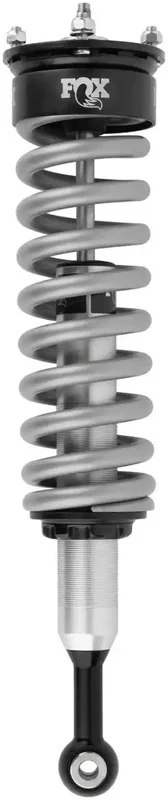

Bolt-on, Performance Series Coil-over IFP shock is loaded with advanced technology and a long list of features that set it apart. The precision, metal impact extruded aluminum body increases cooling capacity and is rust resistant. The vehicle-specific upper mount features a composite bushing that isolates noise and vibration. Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock. Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. The easy-to-install, Performance Series 2.0 Coil-over IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

Features & Benefits

• Components Are Black-Anodized, CNC-Machined 6061-T6 Billet Aluminum
• Shaft Constructed From 5/8 Inch Hard Chrome Plated Heat-Treated Alloy Steel
• Internal IFP Mono-Tube Reservoir Design
• Body Plating: Clear-Anodized For A Durable Finish
• Race-Developed High-Flow Piston Design
• Application Specific Valving To Maximize Performance
• Limited 1 Year Warranty
